3D-environment and muscle contraction regulate the heterogeneity of myonuclei

Skeletal Muscle volume 14, Article number: 27 (2024) Cite this article

Abstract

Skeletal muscle formation involves tight interactions between muscle cells and associated connective tissue fibroblasts. Every muscle displays the same type of organisation, they are innervated in the middle and attached at both extremities to tendons. Myonuclei are heterogeneous along myotubes and regionalised according to these middle and tip domains. During development, as soon as myotubes are formed, myonuclei at muscle tips facing developing tendons display their own molecular program. In addition to molecular heterogeneity, a subset of tip myonuclei has a fibroblastic origin different to the classical somitic origin, highlighting a cellular heterogeneity of myonuclei in foetal myotubes. To gain insights on the functional relevance of myonucleus heterogeneity during limb development, we used 2D culture and co-culture systems to dissociate autonomous processes (occurring in 2D-cultures) from 3D-environment of tissue development. We also assessed the role of muscle contraction in myonucleus heterogeneity in paralysed limb muscles. The regionalisation of cellular heterogeneity was not observed in 2D cell culture systems and paralyzed muscles. The molecular signature of MTJ myonuclei was lost in a dish and paralysed muscles indicating a requirement of 3D-enviroment and muscle contraction for MTJ formation. Tip genes that maintain a regionalized expression at myotube tips in cultures are linked to sarcomeres. The behaviour of regionalized markers in cultured myotubes and paralyzed muscles allows us to speculate whether the genes intervene in myogenesis, myotube attachment or MTJ formation.

Highlights

• The molecular signature of MTJ myonuclei is lost in cultured myotubes and paralysed muscles

• Genes expressed in muscle tips that maintain their regionalised expression in cultured myotubes are linked to sarcomeric proteins

• Cellular heterogeneity of myonuclei is observed in cultured myotubes but with no regionalisation

• BMP signalling regulates fibroblast nucleus incorporation into cultured myotubes

Introduction

Skeletal muscle is composed of myofibres that are multinucleated cells. Molecular and cellular heterogeneity of myonuclei has been identified in developing and adult myofibres. The functional relevance of this myonuclei heterogeneity is not fully understood for limb muscle development.

Limb muscle development involves different steps leading to a final specific limb muscle pattern. The developmental programs of muscle and associated connective tissues (CT) must be tightly regulated to create a functional musculoskeletal system. In vertebrate limbs, myogenic cells and CT fibroblasts have distinct mesodermal origins. Limb myogenic cells originate from somites (paraxial mesoderm), while CT fibroblasts derive from the lateral plate mesoderm [1,2,3,4]. In early limb buds, myogenic cells and fibroblasts are mixed together in dorsal and ventral limb regions. During development, myogenic cells and associated fibroblasts undergo massive spatial re-arrangements and segregate from each other to give rise to skeletal muscle and associated muscle attachments [3,4,5]. These spatial re-arrangements involve multiple molecular and cellular interactions that are not well characterized. Spatial re-arrangements are suspected to be driven by mechanical parameters, since modification of muscle contraction leads to significant defects in the musculoskeletal system formation [6,7,8,9].

Although each limb muscle is unique in terms of shape and position, every muscle displays the same type of organization. They are all attached to tendons at both extremities and innervated at the centre of muscle. This defines the muscle domains, the central domain being where the innervation targets the muscle at the neuromuscular junction (NMJ) and the tip domains being at both extremities of the muscle at the myotendinous junction (MTJ). The MTJ is a peculiar structure that links two tissues with different biomechanical properties, muscle and tendon. The MTJ is mainly composed of matrix proteins produced by muscle fibres and tendon fibroblasts. Among MTJ matrix proteins, type XXII collagen is the best recognized MTJ marker at developmental, postnatal and adult stages, in mouse, zebrafish and human [10,11,12,13]. COL22A1 is mainly produced by MTJ myonuclei, type XXII collagen being deposited at the muscle/tendon interface [10, 12, 13]. In addition to being a recognized MTJ marker, COL22A1 is required for MTJ formation and function in zebrafish [11, 14]. The molecular heterogeneity of myonuclei has been highlighted according to NMJ and MTJ domains, with the identification of NMJ and MTJ myonuclei in postnatal and adult skeletal muscles using single-nucleus RNA-sequencing strategies in mice [15,16,17] and human [13]. In addition to molecular heterogeneity, a subset of tip myonuclei has a fibroblastic origin different to the classical somitic origin, highlighting a cellular heterogeneity of myonuclei in myofiber at the MTJ [18, 19]. Because a fibroblast genetic program has been identified in a subset of MTJ myonuclei in [16], a possible scenario would be that the newly-incorporated fibroblasts into myofiber at muscle tips close to tendons participate in MTJ formation.

The heterogeneity of myonuclei is observed as soon as muscle fibres are formed, with gene expression regionalized in central and tip myonuclei during development [6, 18, 20,21,22]. As expected, subsynaptic myonuclei at the NMJ were identified in the central domain of developing muscles [22]. Similar to NMJ genes, the fusion associated genes, TMEM8C (myomaker) and MYOG have been shown to be regionalised in the middle of limb muscles during foetal development [23]; indicative of preferential fusion events in the middle of foetal muscles close to innervation. Several signalling pathways were identified as being regionalized in tip myonuclei during development with associated function in myogenesis or MTJ formation. FGF4 transcripts are located in tip myonuclei facing developing tendons in chicken limbs and somites [20, 24]. The secreted factor, FGF4 has been suggested to maintain the expression of tendon markers, indicative of a muscle to tendon dialogue [20, 24]. Two transcriptional readouts of YAP signalling, ANKDR1 and CTGF, are regionalized in tip myonuclei in foetal muscles, with an unknown function related to muscle/tendon interface [6]. BMP signalling (assessed with pSMAD1/5/9) in tip myonuclei has been suggested to be involved in fibroblast incorporation into myotubes at the MTJ and limb muscle patterning in chicken and mouse embryos [18, 25].

The cellular and molecular heterogeneity of tip myonuclei is visualized with myonuclei of fibroblast origin and with regionalized expression of genes in developing limb muscles. Although the functional relevance of this molecular and cellular heterogeneity of myonuclei is not fully understood, it is suspected to be relevant to the different steps of the muscle program (proliferation, cell cycle exit, differentiation and fusion), myotube attachment to tendons and MTJ matrix production. In this study, we followed the molecular and cellular heterogeneity of myonuclei in cell culture systems overcoming the complexity of 3D-spatial environments and in limbs with no muscle contraction (paralyzed limbs). The myoblast culture system was used to follow myonucleus heterogeneity during cell lineage progression along the myogenic program. Myoblast/fibroblast co-culture systems combined with the quail/chicken system allow the monitoring of cellular myonucleus heterogeneity i.e. fibroblast incorporation into myotubes. Embryo immobilisation allows us to assess the influence of muscle contraction on myonucleus heterogeneity. The comparison of cellular and molecular heterogeneity of myonuclei in a dish and paralyzed limb muscles with that of motile limb muscles allow us to speculate whether the genes intervene in myogenesis, myotube attachment or MTJ formation.

Material and methods

Quail and chicken embryos

Fertilized chicken eggs (White Leghorn and JA57 strain) and quail eggs (Japanese quail strain) from commercial source (EARL Les Bruyères, Dangers, France) were incubated at 37.5 °C in a humidified incubator until appropriate stages. Embryos were staged according to days of in ovo development. All experiments with chicken embryos were performed before E10 and consequently are not submitted to a licensing committee, in accordance with European guidelines and regulations.

Monoculture experiments

Quail and chicken myoblast cultures

Primary myoblasts were isolated from limbs of E10 quail embryos or E10 chicken embryos. Limbs from quail or chicken embryos were sectioned from the main body, collected, minced and centrifuged at 1000 RPM for 1 min. Supernatant was collected and filtered through a 40 µm sieve to remove debris. Pellet was re-suspended with culture medium and centrifuged at 1000 RPM to collect the remaining cells; supernatant was collected and filtered through a 40 µm sieve. This procedure was repeated four times. Cells were distributed into culture dishes pre-coated with PBS/0,1% Porcin Gelatin. Primary myoblasts were cultured with proliferation medium (2/3 of MEM Alpha Medium, 1/3 of 199 Medium, 10% Foetal calf serum) for two days. When reaching 70% of confluence, cells were cultured in differentiation medium (MEM Alpha Medium, + 1/3 199 Medium, 2% Foetal calf serum).

Quail and chicken fibroblast cultures

Primary fibroblasts were isolated from limbs of E10 quail embryos or E10 chicken embryos. Limbs from quail or chicken embryos were sectioned from the main body, collected and dissociated with trypsine for 20 min and then centrifugated for 5 min at 1000 RPM. The pellet was resuspended in culture media (DMEM) and plated into tissue culture dishes.

C2C12 cells

The mouse muscle cell line, C2C12 was cultured in a proliferation culture medium (DMEM with 4 g/L glucose, 10% Foetal calf serum) to reach 50% of confluence and then in differentiation medium (DMEM with 4 g/L glucose, 1% horse serum).

Human myoblast cell line

The human myoblast cell line AB1079 (provided by Myoline facility, Institut de Myologie, Paris) was cultured in a commercial culture medium, Skeletal Muscle Cell Growth Medium (C-23160 PROMOCELL).

C3H10T1/2 cells

C3H10T1/2 cells, a multipotent cell line established from mouse embryos [26], was cultured in a low glucose fibroblast culture medium (DMEM with 1 g/L glucose, 10% Foetal calf serum).

For monocultures, 125 000 cells were seeded per well of 6-well tissue culture plates coated with 0.1% Gelatin (approx. 13 020 cells/ cm2).

Co-culture experiments with myoblasts and fibroblasts

Co-cultures with quail myoblasts/chicken fibroblasts or with chicken myoblasts/quail fibroblasts

For co-culture experiments, cells were seeded at a ratio of 80% myoblasts and 20% fibroblasts per well. Cells were cultured in proliferation medium (50/50 of medium of each cell type) for two days and switched to differentiation medium for another three days. At day 5, cells were fixed for further analysis.

Co-culture experiments with human myoblasts

Human myoblasts were cultured with mouse myoblasts of C2C12 cells (50% of each cell type) in 50/50 of medium of each cell type. Co-cultures with human myoblasts/C3H10T1/2 and with human myoblasts/chicken fibroblasts were performed with 80% of myoblasts and 20% of fibroblasts at Day 0 of co-culture and cultured in 50/50 of medium of each cell type for another 5 days.

Co-culture experiments with quail myoblasts and BMP-treated chicken fibroblasts

BMP gain- and loss-of-function experiments in chicken fibroblasts were prepared as previously described [18, 21]. Briefly, primary fibroblasts from E10 chicken embryos (White Leghorn) were transfected with the following RCAS-BP(A) constructs: Empty/RCAS (control), BMP4/RCAS (containing mouse Bmp4), BMPR1Aca/RCAS (containing human BMPR1Aca, a constitutive form of BMPR1A), NOGGIN/RCAS (containing chicken NOGGIN) and BMPR1Adn/RCAS (containing human BMPR1Adn, a dominant negative form of BMPR1A) at 60% of confluence using the Calcium Phosphate Transfection Kit (Invitrogen, France). Transfected fibroblasts were cultured for 5 to 7 days to allow virus spread. The transfected fibroblasts were then mixed with quail myoblasts that are not receptive to the RCAS-BP(A) virus [27], with the following proportions, 80% of myoblasts and 20% of BMP-treated fibroblasts at day 0. Co-cultures were then fixed after five days of cultures and processed for in situ hybridization or/and immunohistochemistry. Each co-culture experiments were performed. in duplicates with BMP4- (N = 5), BMPR1Aca- (N = 3), Noggin-(N = 3) and BMPR1Adn-(N = 3) treated chicken fibroblasts.

Embryo immobilization

Decamethonium bromide (DMB) (Sigma) solution was freshly prepared before each experiment at 12 mM, in Hank’s solution (Sigma) with Penicillin–Streptomycin at 1% (Gibco). The control solution was prepared using Hank’s solution with 1% of Penicillin–Streptomycin. 100 µl of DMB or control solutions were administrated in chicken embryos at E7.5 and E8.5. Embryos were fixed at E8.5 (24 h of immobilization) or E9.5 (48 h of immobilization). In situ hybridization was performed on three different paralyzed and control embryos.

In situ hybridization to limbs and cell cultures

Normal or immobilized embryos were fixed in 4% paraformaldehyde (Sigma-Aldrich) overnight at 4°C, then processed in 7.5%/15% gelatin/sucrose (Sigma-Aldrich) for cryostat sections. Limbs were cut in 12-µm transverse or longitudinal sections and processed for in situ hybridization (three-times on different limbs for each probe). Alternating serial sections were hybridized with probe 1, probe 2 and probe 3 to allow comparison of expression domains on adjacent sections of the same limb.

Cell cultures were fixed in 4% paraformaldehyde (Sigma-Aldrich) overnight at 4°C. Fixed cell cultures were hybridized with one probe followed by immunohistochemistry with different antibodies (two wells from three to four independent experiments).

Digoxigenin-labelled or Fluorescein-labelled mRNA probes were prepared as described for MYOD, MYOG, TMEM8C, FGF4, SCX probes [23], for ANKRD1 [6], MEF2C [28]. NES probe was generated from a cDNA EST probe (cambridge bioscience). COL22A1 plasmid was provided by Manual Koch, (Center for Biochemistry, Cologne, Germany). Colorimetric in situ hybridization was performed as described [23] using an antibody against Digoxigenin labelled with alkaline phosphatase. Fluorescence in situ hybridization was performed as described [29], using antibodies (against Digoxigenin or Fluorescein) labelled with POD. Fluorescence was revealed with the TSA + Cyanin 3 or 5 system (AKOYA biosciences).

Immunohistochemistry

In situ hybridization to limb sections or to cells was followed with immunohistochemistry using the MF20 monoclonal antibody (DSHB cat. # MF20, undiluted supernatant), which recognized sarcomeric myosin heavy chains. Muscle progenitors were detected using the monoclonal PAX7 antibody (DSHB cat # PAX7, 1/200). The monoclonal antibodies, PAX7 and MF20 developed by D.A. Fischman and A. Kawakami, respectively were obtained from the Developmental Studies Hybridoma Bank developed under the auspices of the NICHD and maintained by the University of Iowa, Department of Biology Iowa City, IA 52242, USA.

Differentiating myoblasts were detected using the MYOG antibody. The MYOG antibody was provided by Christophe Marcelle (INMG, Lyon, France). Quail nuclei were detected using the QCPN antibody (DSHB cat. # QCPN, undiluted supernatant). Active BMP signalling was detected using the polyclonal pSMAD antibody recognizing the complex BMP-activated receptor-phosphorylated SMAD1/5/9 (Cell Signalling, Ref: 9516S). Secondary antibodies were conjugated with Alexa 488, Alexa 555 or Alexa 647 (Invitrogen). Nuclei were visualized with DAPI (Sigma-Aldrich) staining.

Image capture

After in situ hybridization and/or immunohistochemistry experiments images were obtained using an Apotome.2 epifluorescence microscope (Zeiss) or a Nikon eclipse E800 microscope, with the possibility to combine colorimetric and fluorescence labeling, or a Leica DMR microscope for colorimetric images only.

Image analyses and quantification

In myoblast monocultures, the fusion index is the number of nuclei within MF20 + myotubes (containing at least 2 myonuclei) divided by the total number of DAPI + nuclei per surface unit. Mononucleated MF20 + cells were excluded from the counting. In quail myoblast / chicken fibroblast co-cultures, the fusion index is the number of QCPN + myonuclei within MF20 + myotubes (containing at least 2 myonuclei) divided by the total number of QCPN + nuclei.

In quail myoblast / chicken fibroblast co-cultures, the percentage of chicken fibroblast myonuclei is the number of chicken myonuclei (QCPN-negative) within MF20 + myotubes (containing at least 2 myonuclei) that were divided per the total number of myonuclei or divided per the total number of chicken nuclei (QCPN-negative). In chicken myoblast / quail fibroblast co-cultures, the percentage of quail fibroblast myonuclei is the number of QCPN + nuclei within MF20 + myotubes (containing at least 2 myonuclei) that were divided per the total number of myonuclei or divided per the total number of QCPN + nuclei.

The myotube area per surface unit was calculated as the MF20 + area (green area) per surface unit in quail myoblast cultures and quail myoblast / chicken fibroblast co-cultures.

The percentage of MYOD-, MYOG- and TMEM8C-positive myonuclei was calculated as the number of MYOD-, MYOG- and TMEM8C-positive myonuclei among the total number of myonuclei in the cultures per surface unit. The percentage of NES-, ANKRD1- and MEF2C-positive myotubes was calculated as the number of NES-, ANKRD1- and MEF2C-positive myotubes among the total number of myotubes per surface unit.

In BMP gain- and loss-of-function experiments, the percentage of chicken fibroblast myonuclei is the number of chicken nuclei (QCPN-negative) within MF20 + myotubes that were divided per the total number of myonuclei in quail myoblast / chicken fibroblast (control), quail myoblast / BMPR1Aca chicken fibroblast, quail myoblast / BMP4 chicken fibroblast, quail myoblast / BMPR1Adn chicken fibroblast, quail myoblast / NOGGIN chicken fibroblast co-culture systems.

All the described quantifications were performed using the Cell counter plug-in of the free software Image J / Fiji [30].

Statistics

GraphPad Prism 9.5.1 software was used for statistical analysis. The non-parametric test, Mann Whitney was used to determine statistical significance, which was set at p values < 0.05.

Results

To study the heterogeneity of myonuclei in different contexts, we developed 2D culture and co-culture systems and an immobilisation model in chicken embryo leading to paralyzed limb muscles.

The fusion-associated genes do not display a central location in cultured myotubes

The fusion associated genes, TMEM8C and MYOG were expressed in the middle of muscles away from tendons labelled with SCX expression, in chicken limb muscles (Fig. 1A-D, Fig. S1A-D) [23]. To monitor cell lineage progression along the myogenic program, we cultured primary quail myoblasts isolated from E10 quail limbs. After five days of culture, quail myoblasts differentiated into myotubes (Fig. 1E,F). PAX7 + and MYOG + nuclei were present in the culture assessing the myogenic progression from PAX7 + muscle progenitors (47% of all nuclei) to MYOG + differentiated cells (25.4% of all nuclei) (Fig. 1E-G). In five day myoblast cultures, the fusion index was of 48.7% (Fig. 1G). The differentiation gene, MYOD and fusion associated genes, MYOG and TMEM8C were expressed in differentiating myoblasts and myonuclei of plurinucleated myotubes of five day myoblast cultures (Fig. 1H-M, Fig. S1E-J). In contrast to limb muscles (Fig. 1A,B, Fig. S1A,B), MYOG and TMEM8C transcripts did not display any central location in quail and chicken cultured myotubes (Fig. 1H-M, Fig. S1E-J). TMEM8C, MYOG transcripts did not show any obvious regionalization and were enriched in zones with high density of myonuclei: at contact points between myotubes and at myotube tips (Fig. 1H-M,K’,L’,M’). The percentage of TMEM8C-, MYOG- and MYOD-positive myonuclei (versus total myonuclei) were approximatively equivalent around 38 to 41% (Fig. S1K-M).

Fig. 1
figure 1

Loss of regionalisation of fusion-associated genes in cultured myotubes. A-D Fluorescent in situ hybridization to adjacent transverse muscle sections from E10 chicken embryos with TMEM8C (A), MYOG (B), MYOD (C) and SCX (D) probes (red), followed by an immunolabelling of myosins (green) (D), combined with DAPI staining (nuclei, blue). White dashed lines correspond to the muscle/tendon interface. E-J Primary cultures of limb myoblasts from E10 quail embryos. E,F Myoblasts and myotubes labelled with PAX7 (muscle progenitors, red) and MF20 (myosins, green) antibodies (E), or with MYOG (red) and MF20 (myosins, green) antibodies (F), combined with DAPI staining (nuclei, blue). G Percentage of PAX7-positive nuclei versus total nuclei. Percentage of MYOG-positive nuclei versus total nuclei. Fusion index. Graphs show mean ± s.d. H-J Fluorescent in situ hybridization to quail myoblast cultures with TMEM8C (H), MYOG (I) and MYOD (J) probes (red) followed by an immunolabelling of myosins (green) combined with DAPI staining (nuclei, blue). K-M Fluorescent in situ hybridization to chicken myoblast cultures with TMEM8C (K), MYOG (L) and MYOD (M) probes (red) followed by an immunolabelling of myosins (green) combined with DAPI staining (nuclei, blue). (K’-M’) are high magnification of squared regions in (K-M)

Full size image

We conclude that the fusion-associated genes do not display a central location in cultured myotubes.

The presence of fibroblasts favours all steps of the muscle program and does not change the TMEM8C expression pattern in cultured myotubes

To assess the effect of fibroblasts for muscle differentiation, we monitor cell lineage progression along the myogenic program differentiation in quail myoblast / chicken fibroblast co-cultures (Fig. 2). To follow quail myoblasts and chicken fibroblasts, we used the QCPN antibody that recognized quail nuclei and not chicken nuclei [18]. After 5 days of culture (initially plated with a ratio of 80% myoblasts and 20% fibroblasts), we observed an average ratio of 54% myoblasts and 46% fibroblasts in co-cultures (Fig. 2A); indicating that fibroblasts proliferate faster than myoblasts. 41.7% of PAX7 + cells and 16.5% of MYOG + nuclei versus all nuclei (including both quail and chicken nuclei) were observed in the co-cultures (Fig. 2B-E). Because PAX7 and QCPN were both monoclonal mouse IgG1 antibodies, we could not follow PAX7 + quail nuclei. However, because there are 54% quail nuclei in co-cultures, we could estimate that the percentage of PAX7 + quail nuclei to be 90% and that of MYOG + quail nuclei to be 36% versus quail nuclei (by excluding chicken nuclei). Thus, the presence of fibroblasts induced an increase in the proportion of PAX7 + cells (p = 6,3 10–12) and MYOG + nuclei (p = 0,024) (reported to quail nuclei) in co-cultures versus mono-cultures (47% for PAX7 + cells and 25,4% for MYOG + nuclei, Fig. 1G). The fusion index was slightly increased in co-cultures (57.5%, p = 1,05 10–5) versus myoblast mono-cultures (48.7%) (Fig. 2F versus Fig. 1G). We also observed an increase of myotube area (23,8%) in co-cultures compared to myoblast mono-cultures (12%) (Fig. 2G-I). The increase in the percentage of PAX7 + cells, MYOG + nuclei, fusion index (versus quail nuclei) and myotube area/unit area in co-cultures versus mono-cultures converge to the idea that the presence of fibroblasts favours the progression of all steps of the muscle program, consistent with previous studies [31]. Consistent with the increase of MYOG + nuclei, fusion index and myotube area/unit area, the fusion gene (Fig. 2C,E-I), TMEM8C is highly expressed in co-cultures (Fig. 2J,K). However, TMEM8C displayed the same expression pattern in myotubes of co-cultures and mono-cultures, being expressed in zones with high density of myonuclei: at contact points between myotubes and at myotube tips (Fig. 2J,K).

Fig. 2
figure 2

Fibroblasts promote myoblast differentiation in fibroblast/myoblast co-cultures. A Percentage of quail myoblasts and chicken fibroblasts in co-cultures after five days of cultures. Representative field of quail nuclei (QCPN antibody, red) and chicken nuclei (DAPI, blue). B Quail myoblast / chicken fibroblast co-cultures immunolabelled to PAX7 (PAX7 antibody, red) and myosins (QCPN antibody, green) combined with DAPI staining (blue). C Quail myoblast / chicken fibroblast co-cultures immunolabelled to MYOG (red) and myosins (QCPN antibody, green) combined with DAPI staining (blue). D,E Percentage of PAX7-positive nuclei (D) and of MYOG-positive nuclei (E) versus total nuclei in fibroblast/myoblast co-cultures. F Fusion index of quail cells in co-cultures. Graphs show mean ± s.d. G,H Myoblast cultures (G) and myoblast/fibroblast co-cultures (H) labelled with the MF20 antibody (myosins, green), combined with DAPI staining (nuclei, blue). I Quantification of myotube area per surface unit in myoblast cultures and myoblast/fibroblast co-cultures. Graph shows mean ± s.d. J,K Fluorescent in situ hybridization to quail myoblast cultures (J) and to quail myoblast / chicken fibroblast co-cultures (K) with TMEM8C probe (red) followed by an immunolabelling of myosins (green) combined with DAPI staining (nuclei, blue)

Full size image

We conclude that the presence of fibroblasts promotes all steps of the muscle program and does not modify the TMEM8C expression pattern in myotubes of fibroblast/myoblast co-cultures.

Fibroblast nuclei are incorporated into myotubes in myoblast/fibroblast co-cultures with no obvious regionalisation

We recently identified a cellular heterogeneity of tip myonuclei with the incorporation of fibroblast nuclei into myotubes with a preferential location at muscle/tendon interface in foetal limb muscles [18]. We first wanted to assess if fibroblast nucleus incorporation occurred in myotubes in vitro. To address this question, we set myoblast/fibroblast co-culture systems using the quail/chicken system that singles out quail and chicken nuclei independently to their differentiation status. We performed myoblast/fibroblast-co-culture experiments with quail primary myoblasts and chicken primary fibroblasts from E10 limbs, initially plated with a ratio of 80% myoblasts and 20% fibroblasts, and left for five days of cultures. Primary chicken fibroblasts isolated from foetal limbs did not express PAX7 or MYOG (Fig. S2A,B). Chicken fibroblasts express the SMA myofibroblast marker, the COL12A1 connective tissue marker, and the SCX (coding for a bHLH transcription factor) and TNMD (coding for a transmembrane protein) tendon markers (Fig. S2C-F), suggestive of a fibroblast/tendon progenitor phenotype [32]. Using the QCPN antibody that recognized quail nuclei and not chicken nuclei, we followed myoblasts and fibroblasts independently of their molecular statuses along the cultures. In quail myoblast / chicken fibroblast co-cultures, we appreciated a small population of myonuclei that were not of quail origin (Fig. 3A-B). Chicken fibroblast myonuclei represented 11% of the myonuclei, and 6% of fibroblast nuclei were recruited into myotubes after 5 days of culture (Fig. 3B). To exclude any potential bias regarding the labelling of quail myonuclei with the QCPN antibody, we performed the converse co-culture experiments with chicken myoblasts and quail fibroblasts. Similarly to the chicken fibroblast nucleus incorporation into quail myotubes, we observed an incorporation of quail fibroblast nuclei within chicken myotubes (Fig. 3C-C”). We quantified 20% of quail fibroblast myonuclei out of all myonuclei into myotubes and around 8% of quail fibroblast nuclei were recruited into myotubes (Fig. 3D). The fibroblast-derived myonuclei did not appear to be regionalized along the myotubes in both types of avian co-culture experiments (Fig. 3A-A”,C–C”), while fibroblast nuclei are incorporated with a preferential location at muscle/tendon interface in foetal limbs muscles [18] and postnatal muscles [19].

Fig. 3
figure 3

Recruitment of fibroblast nuclei into myotubes in fibroblast/myoblast co-cultures. (A,A’,A”) Quail myoblast and chicken fibroblast and co-cultures immunolabelled to quail nuclei (QCPN antibody, red) and myosins (MF20 antibody, green), combined with DAPI staining (nuclei, blue). A Left panel shows quail nuclei/Myosins/DAPI, while right panels (A’,A”) are high magnification squared in A, showing quail nuclei/Myosins/DAPI staining (A’) and quail nuclei/Myosins (A”). Arrows point to chicken fibroblast myonuclei. B Percentage of chicken fibroblast myonuclei versus quail and chicken myonuclei and versus total chicken nuclei. Graph shows mean ± s.d. (C,C’,C”) Chicken myoblast and quail fibroblast and co-cultures immunolabelled to quail nuclei (QCPN antibody, red) and myosins (MF20 antibody, green), combined with DAPI staining (nuclei, blue). C Left panel shows quail nuclei/Myosins/DAPI, while right panels (C’,C”) are high magnification squared in C, showing quail nuclei/Myosins/DAPI staining (C’) and Myosins/DAPI (C”). Arrows point to quail fibroblast myonuclei. D Percentage of quail fibroblast myonuclei versus chicken and quail myonuclei and versus total quail nuclei. Graph shows mean ± s.d. (E,E’,E”,F,F’,F”) Fluorescent in situ hybridization to quail myoblast / chicken fibroblast co-cultures with MYOG (E,E’,E”) or TMEM8C (F,F’,F”) probes (red) followed by an immunolabelling of myosins (green) and of quail cells (grey) combined with DAPI staining (nuclei, blue). Arrows point to chicken fibroblast myonuclei expressing MYOG (E,E’,E”) and TMEM8C (F,F’,F”)

Full size image

In order to test if fibroblast recruitment was conserved in co-cultures between species, we performed co-cultures with a human myoblast cell line (line AB1079) (Fig. S3A-A”) associated with mouse or chicken fibroblasts. We first verified that myoblast fusion was possible between human and mouse myoblasts. Human myoblasts did fuse with mouse C2C12 myoblasts to form heterogeneous myotubes with human and mouse myonuclei (Fig. S3B-B”). Co-cultures with human myoblasts and mouse C3H10T1/2 fibroblasts [26] show sporadic events of incorporation of mouse fibroblast nuclei into human myotubes (Fig. S3C-C”). We also performed co-cultures of human myoblasts with primary chicken fibroblasts and observed no or very rare events of chicken fibroblast nuclei into human myotubes (Fig. S3D-D”). The presence of heterologous fibroblasts did not change the fusion index of human muscle cells (Fig. S3E-H). We conclude that fibroblast nucleus recruitment to myotubes is observed within homologous and not heterologous species.

In order to assess if fibroblast myonuclei expressed the fusion-associated genes, we sought for MYOG and TMEM8C expression in fibroblast myonuclei of quail myoblast /chicken fibroblast co-cultures. We found that fibroblastic myonuclei expressed the fusion-associated genes, MYOG and TMEM8C (Fig. 3E-E”,F-F”), indicating a reprograming of fibroblast myonuclei towards the myogenic program.

We conclude that fibroblast nuclei are recruited into myotubes in myoblast/fibroblast co-cultures, similarly to fibroblast recruitment into foetal limb muscles, although with no regionalisation and that the fibroblast-derived myonuclei are reprogrammed into the myogenic program.

BMP signalling regulates the incorporation of fibroblast nuclei into myotubes in cultures

BMP signalling has been shown to regulate fibroblast nucleus incorporation into myotubes preferentially at muscle tips during limb development consistent with active BMP signalling at muscle/tendon interface [18, 21]. BMP4 ligand was produced by tendon cells (visualized with BMP4 transcripts in tendons) (Fig. 4A, arrow), while BMP-responsive nuclei, visualized with pSMAD1/5/9, were located in tendon cells (Fig. 4B,B’, arrow) and in a subpopulation of myonuclei close to tendon, in chicken limb muscles (Fig. 4B,B’,C). The tip regionalisation of BMP-responsive nuclei observed in limb muscles was lost in myoblast cultures since pSMAD1/5/9 was observed in all myonuclei of cultured myotubes (Fig. 4D-D”). In order to assess the effect of BMP signalling in fibroblast nucleus incorporation into myotubes, we performed BMP gain-and-loss of function experiments in chicken fibroblasts and then cultured them with quail myoblasts (Fig. 4E-J). Using the RCAS-BP(A) retroviral system, we were able to infect chicken fibroblasts and not quail myoblasts [27]. BMP gain-of-function experiments were performed with BMPR1Aca/RCAS and BMP4/RCAS [21], while BMP loss-of-function experiments were performed with BMPR1Adn/RCAS and NOGGIN/RCAS [3, 21]. The BMP-treated fibroblasts were then associated with quail myoblasts as co-cultures. When BMP signalling pathway was up-regulated in chicken fibroblasts, an increase of fibroblast nucleus incorporation into myotubes was observed from 11.5% to 13.3% for BMPR1Aca and from 11.5% to 14.3% for BMP4 (Fig. 4G), while the blockade of BMP signalling in fibroblasts decreased fibroblast nucleus incorporation into myotubes from 8% to 4.4% for BMPR1Adn and from 8% to 5.5% for NOGGIN (Fig. 4J). We did not observe any obvious regionalisation of fibroblast myonuclei along the myotubes in BMP treated co-cultures (Fig. 4E,F,H,I).

Fig. 4
figure 4

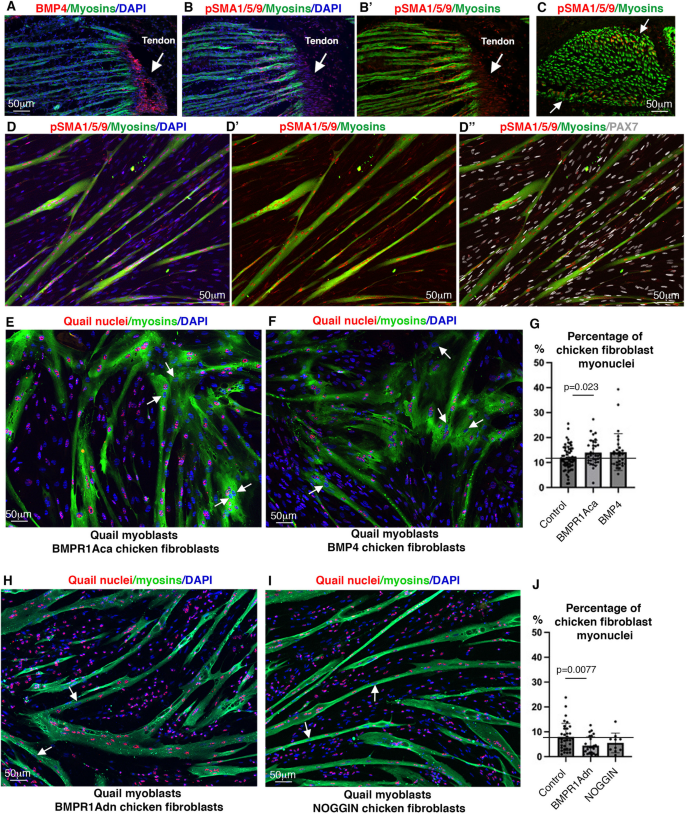

BMP signalling regulates the incorporation of fibroblast nuclei into myotubes. A Fluorescent in situ hybridization to longitudinal sections of limb muscles with BMP4 probe (red) followed by an immunohistochimistry with the MF20 antibody (myosins, green) combined with DAPI staining (nuclei, blue). B,B’ Immunohistochemistry to adjacent longitudinal sections of limb muscle sections with pSMAD1/5/9 (red) and MF20 (myosins, green) antibodies combined with DAPI staining (nuclei, blue). C Immunohistochemistry to transverse sections of limb muscles with pSMAD1/5/9 (red) and MF20 (myosins, green) antibodies). D,D’,D” Immunohistochemistry to quail myoblast cultures with pSMAD1/5/9 (red), PAX7 (grey) and MF20 (myosins, green) antibodies combined with DAPI staining (nuclei, blue). E-J BMPR1Aca-transfected chicken fibroblasts (E), BMP4-transfected chicken fibroblasts (F), BMPR1Adn-transfected chicken fibroblasts (H) or NOGGIN-transfected chicken fibroblasts (I) were co-cultured with quail myoblasts; and labelled with the QCPN (quail nuclei, red), MF20 antibody (myosins, green) combined with DAPI staining (nuclei, blue). G Percentage of chicken fibroblast myonuclei within myotubes in control-, BMPR1Aca-, BMP4-transfected chicken fibroblasts cultured with quail myoblasts, (BMP gain-of-function experiments). J Percentage of chicken fibroblast myonuclei within myotubes in control-, BMPR1Adn-, NOGGIN-transfected chicken fibroblasts cultured with quail myoblasts, (BMP loss-of-function experiments). (G,J) Graphs shows mean ± s.d

Full size image

We conclude that BMP signalling regulate the incorporation of fibroblasts into myotubes in vitro, as observed in limb muscles [18], although with no obvious regionalisation.

Genes expressed in tip myonuclei of limb muscles behave differently in cultured myotubes

BMP-responsive myonuclei lost their tip regionalisation in cultured myotubes (Fig. 4); this prompted us to analyse in a dish, the expression of genes known to be expressed in tip myonuclei of limb muscles. We first analysed the expression of the main MTJ marker, COL22A1 [10, 11] with that of the secreted factor, FGF4 also expressed in tip myonuclei of developing chicken muscles [20]. Consistent with these studies, COL22A1 and FGF4 transcripts were located in myonuclei at muscle ends close to tendons visualized with SCX expression on transverse and longitudinal muscle sections of E10 chicken limbs (Fig. 5A-F). The expression of COL22A1 and FGF4 was lost in chicken cultured myotubes (Fig. 5G-H). No COL22A1 expression was observed in quail cultured myotubes (Fig. 5I), while being expressed in tip myonuclei of quail limb muscles (Fig. S4). The presence of chicken fibroblasts did not induce COL22A1 expression in quail myotubes in co-culture experiments (Fig. 5I,J).

Fig. 5
figure 5

The COL22A1 and FGF4 expression in tip myonuclei of limb muscles is lost in cultured myotubes. A-F Gene expression for muscle tip genes (COL22A1, FGF4) and tendon gene (SCX) in adjacent transverse (A-C) and longitudinal (D-F) muscle sections from E10 chicken limbs with fluorescent in situ hybridization with COL22A1 (A,D), FGF4 (B,E) and SCX (C,F) probes (red), followed by an immunohistochemistry with the MF20 antibody to label myosins (green) combined with DAPI staining (blue). Arrows point to tendons and muscle/tendon interface. G-J Fluorescent in situ hybridization to chicken myoblast cultures (G,H), quail myoblast cultures (I) and quail myoblast / chicken fibroblast co-cultures (J) with COL22A1 (G,I,J) and FGF4 (H) probes (red) followed by an immunolabelling of myosins (green) combined with DAPI staining (nuclei, blue)

Full size image

We next analysed the expression of three other genes in cultured myotubes, genes identified as being expressed in the tip domains of muscles and involved in the skeletal muscle program. NES, coding for the cytoskeletal intermediate filament Nestin, contributes to skeletal muscle homeostasis and regeneration in mice [33]; Nestin being located at muscle tips in limb muscles of newborn mice and adult rats [34, 35]. The Nestin protein has been shown recently to be accumulated at the myotendinous junction in human and horse muscles [36]. ANKRD1 (ANKyrin repeat Domain 1) coding for a muscle-ankyrin repeat protein has been described as being expressed in tip myonuclei during chicken foetal development [6] and is a marker of the MTJ Col22a1 + nucleus cluster of adult mouse muscles [15]. MEF2C (Myocyte enhancer factor 2C) codes for a transcription factor at the crossroad of transcriptional regulations in the skeletal muscle program during muscle development, homeostasis and regeneration [37]. MEF2C labels the muscle/tendon interface in axial somites during larval Xenopus development [38] and zebrafish development [39]. NES, ANKRD1 and MEF2C transcripts were regionalized in tip myonuclei of foetal limb muscles of chicken embryos (Fig. 6A-C), close to SCX transcripts in tendon (Fig. 6D). NES transcripts were also regionalized in tip myonuclei of limb muscles of quail embryos (Fig. S4). In contrast to COL22A1 and FGF4, the 3 tip genes, NES, ANKRD1, MEF2C, were expressed in cultured myotubes and displayed a regionalized expression pattern at myotube tips, while MYOG was distributed along myotubes (Fig. 6E-H). The percentages of myotubes displaying NES (83%), ANKRD1 (80%) and MEF2C (67%) expression were similar for the three genes. An interesting point is that these three genes were located in zones of low myosin expression, while MYOG transcripts were located in zones of myosin expression in cultured myotubes (Fig. 6E’-H’).

Fig. 6
figure 6

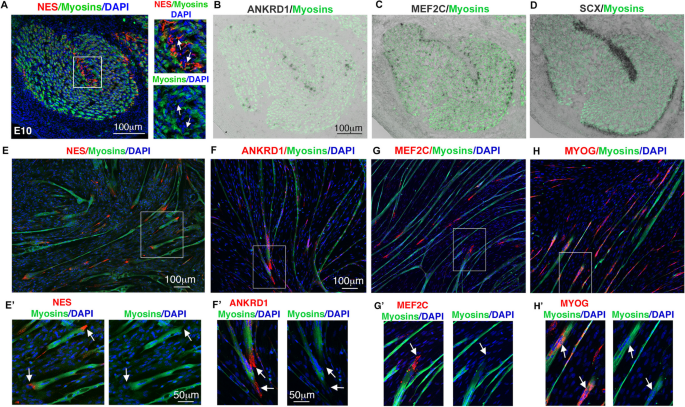

The regionalized expression of NES, ANKRD1 and MEF2C in tip myonuclei of limb muscles is maintained in cultured myotubes. A-D Gene expression for muscle tip genes (NES, ANKRD1, MEF2C) and tendon gene (SCX) in transverse muscle sections from E10 chicken limbs with fluorescent in situ hybridization for NES probe (A) and with colorimetric in situ hybridization for ANKRD1 (B), MEF2C (C) and SCX (D) probes (dark grey), followed by an immunohistochemistry with the MF20 antibody to label myosins (green). E Fluorescent in situ hybridization to quail myoblast cultures with NES probe (red) followed by an immunolabelling of myosins (green) combined with DAPI staining (nuclei, blue). F-G Fluorescent in situ hybridization to chicken myoblast cultures with ANKRD1 (F), MEF2C (G), MYOG (H) probes (red) followed by an immunolabelling of myosins (green) combined with DAPI staining (nuclei, blue). E’-H’ are high magnifications of squared areas in (E–H). Arrows point to NES (E’), ANKRD1 (F’) and MEF2C (G’) expression at myotube tips in low myosins-expressing zones, while MYOG transcripts (F’) are expressed in myosins-positive zones

Full size image

In order to assess if the presence of fibroblasts affects the regionalisation of tip genes in myotubes, we analyse the expression of NES, ANKRD1 and MEF2C in co-culture experiments with quail myoblasts and chicken fibroblasts. The presence of fibroblasts did not modify the tip expression of NES, ANKRD1 and MEF2C transcripts in cultured myotubes (Fig. 7A-C). Thanks to the quail/chicken system, we could assess NES expression in fibroblast-derived myonuclei. The fibroblast-derived myonuclei did or did not express NES, consistent with the absence of regionalization of fibroblast recruitment and the persistent NES expression in myotube tips of co-cultures (Fig. 7D,D’,E, F-F”).

Fig. 7
figure 7

The regionalized expression of NES, ANKRD1 and MEF2C in cultured myotubes is not changed in the presence of fibroblasts. A-C Fluorescent in situ hybridization to quail myoblast / chicken fibroblast co-cultures with the NES (A), ANKRD1 (B) and MEF2C (C) probes (red), followed by an immunohistochemistry with the MF20 antibody to label myosins (green) combined with DAPI staining (blue). D,D’ High magnification of the area squared in A, showing in the top panel, (NES transcripts, red, myosins, green) and DAPI staining, blue) combined with immunolabelling of quail nuclei (grey) (D), and in the bottom panel, immunolabelling of quail nuclei (grey) combined with DAPI staining, (blue) (D’). Arrowheads point to chicken fibroblast myonuclei expressing NES, while arrows point to point to chicken fibroblast myonuclei not expressing NES. E Fluorescent in situ hybridization to quail myoblast / chicken fibroblast co-cultures with NES probes (red) followed by an immunolabelling of myosins (green) and of quail nuclei (grey), combined with DAPI staining (nuclei, blue). F,F’,F” High magnification of the area squared in E, showing NES transcripts, (red), myosins, (green) and DAPI staining (blue) combined with immunolabelling of quail nuclei (grey) (F), showing myosins, (green) and DAPI staining (blue) combined with immunolabelling of quail nuclei (grey) (F’) and showing NES transcripts, (red), DAPI staining (blue) combined with immunolabelling of quail nuclei (grey) (F”). (F,F’,F”) Arrows points to a chicken fibroblast myonuclei with low/residual levels of NES incorporated into a quail myotube

Full size image

We conclude that the tip markers display three types of behaviours in cultured myotubes: loss of regionalisation (pSMAD1/5/9), loss of expression (COL22A1, FGF4), or maintenance of regionalized expression (NES, ANKRD1, MEF2C). The presence of fibroblasts does not modify the expression pattern of tip markers in cultured myotubes.

Inhibition of muscle contraction affects gene expression in tip myonuclei of limb muscles

Mechanical parameters are recognized to be an important regulator of the musculoskeletal system [8]. Muscle contractions have been shown to regulate the steps of the muscle program during foetal myogenesis [6, 23]. The absence of muscle contraction reduces the pool of muscle progenitors, while increasing their propensity to differentiate and fuse during foetal myogenesis. In order to assess the behaviour of genes expressed in tip myonuclei in absence of mechanical signals, we analysed the expression of tip genes in an unloading model during foetal myogenesis. We used the decamethonium bromide (DMB), which blocks muscle contractions and leads to limb muscle paralysis [40]. Two days after the inhibition of muscle contraction, the expression of COL22A1 and FGF4 was lost in limb muscles (Fig. 8A-D), reminiscent of the loss of COL22A1 and FGF4 expression in myotube cultures (Fig. 5G-I). The regionalisation of pSMAD1/5/9 in tip myonuclei in foetal limbs was lost in limbs of immobilized embryos (Fig. S5); reminiscent of pSMAD1/5/9 location in all myonuclei of cultured myotubes (Fig. 4D-D’’). Lastly, the regionalised expression of NES was maintained in limb muscles in the absence of muscle contraction (Fig. 8E,E’,F,F’), reminiscent of the regionalized expression of NES in cultured myotubes (Fig. 6E,E’), while the expression of ANKRD1 [6] and MEF2C (Fig. S6) was lost in limbs immobilized embryos.

Fig. 8
figure 8

Inhibition of muscle contraction modified the expression of genes expressed in tip myonuclei of foetal muscles. Chicken embryos were treated with DMB at E7.5 to block muscle contraction and analysed 48 h after treatment at E9.5 (N = 3). A-D In situ hybridization to transverse limbs sections at the level of the zeugopod of control (A,C) and DMB-treated (B,D) E9.5 chicken embryos, with COL22A1 (A,B) and FGF4 (C,D) probes (blue) followed by immunostaining with the MF20 antibody to label myosins (light brown). The expression of COL22A1 and FGF4 was lost in paralyzed muscles (B,D) compared to control muscles (A,C). Note that COL22A1 expression is maintained in cartilage and perichondrium in paralyzed limbs (B) as in control limbs (A). E, E’, F,F’ Fluorescent situ hybridization to transverse limbs sections at the level of the zeugopod of control (E,E’) or DMB-treated (F,F’) E9.5 chicken embryos, with NES probe (red) followed by immunostaining with the MF20 antibody to label myosins (green) and stained with DAPI (blue). (E’,F’) are high magnification of the FCU muscles of E (control) and F (DMB-treated) limbs. u, ulna, r, radius

Full size image

We conclude that the mechanical signals affect the molecular heterogeneity of myonuclei in limb foetal muscles.

Discussion

Myonucleus heterogeneity is altered in a dish and paralyzed limb muscles versus (motile) limb muscles. This shows the requirement of 3D-environment and muscle contraction for myonucleus heterogeneity. The different behaviours of regionalised markers in the absence of 3D and mechanical environments also allow us to speculate whether the genes intervene in myogenesis, myotube attachment or MTJ formation.

The regionalisation of myonuclei within myotubes is dependent of 3D environment and muscle contraction

Cellular heterogeneity of myonuclei is assessed with the regionalization of myoblast fusion in the middle and fibroblast incorporation at the tips during muscle development. The regionalized expression of the fusion associated genes, TMEM8C and MYOG in limb muscles is indicative of a preferential location of myoblast fusion in central domains of limb foetal muscles [23]. The central regionalisation of TMEM8C and MYOG transcripts along myotubes was not observed in cultures (Fig. 1, Fig. S1). This indicates that the regionalisation of TMEM8C-dependent myoblast fusion is dependent of a 3D-environment not present in a dish. The presence of fibroblasts in co-culture experiments did not change the absence of regionalization of the fusion genes along myotubes, but increased myoblast fusion (Fig. 2J,K). Interestingly, the absence of muscle contraction also leads to an increase of myoblast fusion and to a loss of TMEM8C and MYOG regionalized expression in paralyzed limb muscles [6, 23]. It was recently shown that TGFβ inhibition promotes myoblast fusion in vivo and in vitro [41]. Although TGFβ ligands are expressed in limb muscles with no clear specific regionalisation [7], we cannot exclude a regionalization of TGFβ activity within muscles using the heterodimer receptor complementation mechanism [41].

In addition to be supportive actors of myogenesis, fibroblasts contribute to myotube formation. A contribution of fibroblast nuclei to myotubes has been recently highlighted during myogenesis during foetal development and postnatal life [18, 19, 42, 43]. We recapitulated the incorporation of fibroblast nuclei into myotubes in avian co-culture experiments; consistent with the incorporation of Prrx1 lineage into myotubes in mouse co-culture experiments [19]. This indicates that fibroblast incorporation into myotubes is a robust phenomenon independent of any 3D-environment. Fibroblast nuclei incorporate myotubes at a ratio of about 12% of all myonuclei in avian co-culture experiments. This is very similar to the ratio observed in developing chicken and mouse limb muscles [18]. The fact that fibroblast myonuclei expressed the TMEM8C and MYOG genes (Fig. 3E,F) suggests that fibroblast myonuclei are reprogrammed into the myogenic program. In contrast to limb muscles, the incorporation of fibroblast nuclei was not regionalized in cultured myotubes and BMP signalling was active in all myonuclei of cultured myotubes. As in foetal limb muscles, BMP signalling regulates the incorporation of fibroblast nuclei in co-culture experiments (Fig. 4). There is a striking correlation between active BMP signalling and fibroblast incorporation, with no regionalisation along myotubes in culture experiments and regionalisation at the tips of myotubes within foetal muscles, strengthening BMP function in the incorporation of nuclei of fibroblast origin into myotubes in vitro and in vivo. The regionalisation of BMP signalling was lost in paralyzed muscles, indicating a requirement of mechanical input for fibroblast incorporation in foetal limbs.

We conclude that the regionalisation of fibroblast myonuclei within myotubes was not observed in 2D-culture systems and paralysed limb muscles.

MTJ myonuclei lose their molecular signature in 2D-culture systems and immobilisation conditions

COL22A1 the recognized marker of MTJ myonuclei, involved in MTJ formation and homeostasis [11, 14] is a powerful proxy for the MTJ. COL22A1 expression was not observed in cultured myotubes and not induced in myonuclei of myoblast/fibroblast co-cultures, indicative of an absence of MTJ in 2D-culture systems. COL22A1 was also lost in tip myonuclei of foetal limb muscles of immobilized embryos. The similar absence of FGF4 expression in cultured myotubes and paralyzed muscles is consistent with the identified function for FGF4 to regulate the expression of tendon collagen genes downstream of mechanical forces [7, 20]. Based on COL22A1 and FGF4 behaviour in paralyzed limbs and culture systems, we conclude that 3D-environment and muscle contraction are required to generate a muscle/tendon interface at the origin of MTJ. This is consistent with the requirement of muscle contraction for MTJ formation in mice [44]. We speculate that a 2D- or 3D-environment with controlled mechanical parameters will be more suitable to engineer a muscle/tendon interface that resemble to MTJ.

Genes that maintain expression in tip myonuclei in cultured myotubes are linked to sarcomeres

In addition to COL22A1, which has a recognized function in MTJ formation, we identified other genes expressed in tip myonuclei during foetal myogenesis. We identified three tip markers (MEF2C, ANKRD1, NES) of limb foetal muscles, which kept their regionalized tip expression in cultured myotubes. In contrast to the COL22A1 MTJ marker, the expression of these genes is independent of a 3D-environment. The proteins coded by these three genes are a priori unrelated in term of structure, one transcription factor (MEF2C), one thick-filament-binding protein shuttling from cytoplasm to nucleus (ANKRD1), and one intermediate filament (Nestin). However, these three proteins have in common being linked to sarcomeric proteins in muscle fibres. MEF2C has been shown to be required for the assembly of myosin-containing thick filaments in nascent muscle fibres [45]. ANKRD1 acts as a junctional adhesion protein maintaining the integrity of striated muscle sarcomeres through its connection with two myofilaments: titin and myopalladin [46,47,48]. Lastly, Nestin location is modified in a defective myofibril assembly mouse model [35]. Interestingly, the enzyme LoxL3, expressed in tip myonuclei in limb muscles and cultured myotubes, is involved in the anchoring of myotubes to tendon matrix at the MTJ in mice [49]. We speculate that the tip genes that maintain their expression in a dish could be involved in the process of attachment of myotubes to the culture dish. Because culture plates have been plated with gelatin (a denatured collagen), it is tempting to speculate that during development these tips genes are the bridging link in the attachment of sarcomeres at myotube tips to matrix components produced by tendon fibroblasts in limb muscles.

In addition to being linked to sarcomeric proteins of skeletal muscles, ANKRD1and MEF2C are also linked to mechanical stress inherent to sarcomere contractile function. ANKRD1 functions as a mechano-sensing protein along the titin protein for skeletal muscle remodelling [50] and regulates passive forces by locking titin to thin filaments, protecting sarcomere from mechanical damage [51]. MEF2C translation has been shown to be controlled by muscle activity to regulate myofibrillogenesis [39]. Consistent with this mechano-sensing function, the ANKRD1 and MEF2C expression is lost in paralysed muscles of immobilized embryos [6] (Fig. S6). The maintenance of ANKRD1 and MEF2C expression in tips of cultured myotubes can be explained by their additional functions in physical attachment of myotubes to the culture dish. In contrast to ANKRD1 and MEF2C, the regionalized expression of NES was still observed in paralyzed muscles, suggesting an expression independent of the loss of mechanical signals during foetal myogenesis. However, the NES mRNA levels were increased at the MTJ after exercise, while those of COL22A1 were unaffected in human mature MTJ [52]. The NES mRNA level increase after exercise is to be related to the increase of sarcolema length at the MTJ in rat muscles in trained conditions [53, 54].

Conclusion

In the absence of 3D-environment (in a dish) and muscle contraction, we observed different types of behaviour for the regionalized markers of myonuclei. These different behaviours provide us with clues to speculate on gene functions. A first behaviour was the absence of regionalisation of myonucleus markers in a dish and paralysed limbs. This concerns the fusion-associated genes, TMEM8C, MYOG, and the regulator of fibroblast incorporation, pSMAD1/5/8. Because these regionalized markers are linked to cellular heterogeneity, i.e. myoblast fusion in the middle domain and fibroblast incorporation in the tip domains, we conclude that the regionalization of cellular heterogeneity of myonuclei is dependent on a 3D-environment. A second behaviour was a complete loss of gene expression in cultured myotubes and paralyzed muscles for the MTJ markers, COL22A1 and FGF4, assessing the absence of MTJ in 2D culture systems (Fig. 9). A third behaviour was the maintenance of regionalized expression in tip myonuclei of cultured myotubes with the intermediary filament nestin (NES), the thick-filament-binding protein, ANKRD1 and the transcription factor MEF2C (regulating thin filament transcription) (Fig. 9). The common denominators of these tip genes may reflect a function in myotube attachment to matrix.

Fig. 9
figure 9

Schematic of molecular and cellular heterogeneity of myonuclei in a dish. In foetal limb muscles, COL22A1, FGF4, NES, ANKRD1 and MEF2C transcripts are located in tip myonuclei. In a dish, the expression of COL22A1 and FGF4 is lost, while the expression of NES, ANKRD1 and MEF2C is maintained in tips of cultured foetal myotubes. In limb muscles, fibroblast incorporation is observed preferentially at muscle tips, while there is no regionalisation of fibroblast incorporation in myotubes in fibroblast/myoblast co-cultures. Myotubes are in pink and tendons in green. Tip gene expression is schematized in purple. Myoblast nuclei and myonuclei are in red and fibroblast nuclei are in green

Full size image

These results highlight the importance of 3D-environment and muscle contraction for the molecular and cellular heterogeneity of myonuclei and shed light about the relevance of this heterogeneity for myogenesis, myotube attachment and/or MTJ formation.

Data availability

No datasets were generated or analysed during the current study.
